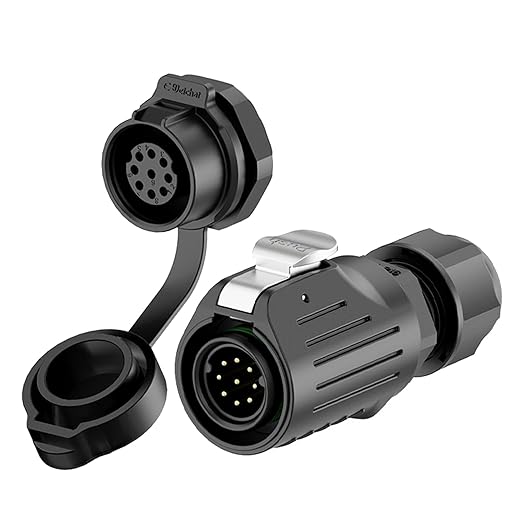

EW-LP16 Industrial Waterproof Connector IP68 Quickly Plugging Aviation Connector PBT Plastic Shell Circular Connector Fast Release Electrical Connector M16 2-9 Pin Thread Socket (9 Pin)

EW-LP16 Industrial Waterproof Connector IP68 Quickly Plugging Aviation Connector PBT Plastic Shell Circular Connector Fast Release Electrical Connector M16 2-9 Pin Thread Socket (9 Pin)

✔ 14 Day Money Back Guarantee

✔ Secure Checkout (SSL Protected)

$42.99 USD
$42.99 USD
Sale Sold out
Shipping calculated at checkout.

About This

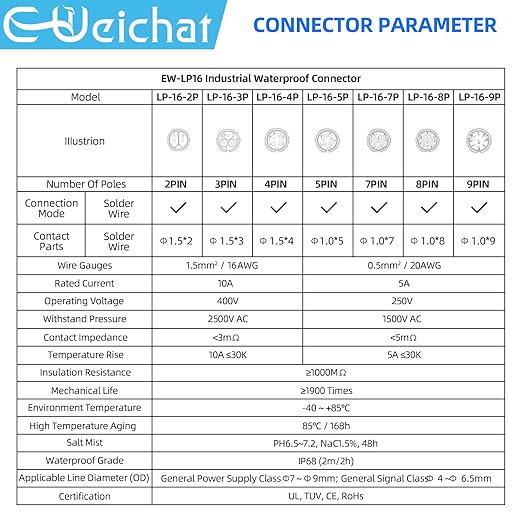

  • Pairing Type: Male Plug + Female Socket ; Connecting Mode: One-Touch Button Plug/Unplug ; Locking Method: Automatic Insertion, Self-Locking Device ; Protection Level: IP68(2m/2h)(Mated) ; Assembly Style: Solder/Weld ;
  • < Cable Standards >: Cable Specification: 0.5mm²/20AWG ; Cable Diameter Range: Ф7.0~Ф9.0mm; Contact Diameter × Number: φ1.0x9 ; Durability: ≥1900 Mating/Unmating Cycle ;
  • < Electrical Characteristics >: Rated Current: 5A ; Operating Voltage (AC.V.rms): 250V ; Withstanding Voltage: 1500V ; Contact resistance: ＜5mΩ ; Insulation Resistance: ＞1000MΩ ; Prohibit Pluging While Energized ;
  • < Material Performance >: Shell Material: High Performance PBT Plastic Material ; Temperature Range: -40°C ~ 80°C ; High Temperature Aging: 85 ℃ / 168 H ; Temperature Rise: 5A 30K↓; Flame Retardant Grade: UL94 V-0 ; Seal: High Quality Silicone Ring ; Contact Core: Copper Alloy (Gold Plated) ;
  • < Widely Used >: In Various Challenging Environments. Suitable For Machinery, Medical, Servers, Photovoltaic, Energy Storage, Power Grids, Automotive, Marine, Communications, Detection, Measurement, Industrial Control, Audio-Visual Equipment, Stage Equipment, And More ;
